1 1/4" (20B) British Standard pitch sprockets. Manufactured in cast iron.
20B-1 38T Cast Iron Sprocket (10SR38C)
20B-1 38T Cast Iron Sprocket (10SR38C)

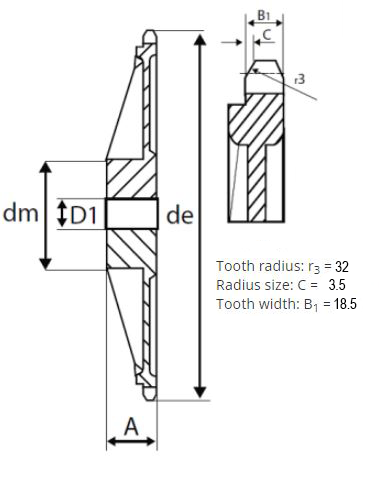

| Part No. | 7827-143 |
| Code | 10SR38C |
| No. teeth | 38 |
| Outside dia. de | 399.6 |
| Pitch dia. dp | 384.49 |
| Boss dia. | 125 |
| Bore D1* | 35 |
| Overall Width A | 70 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
