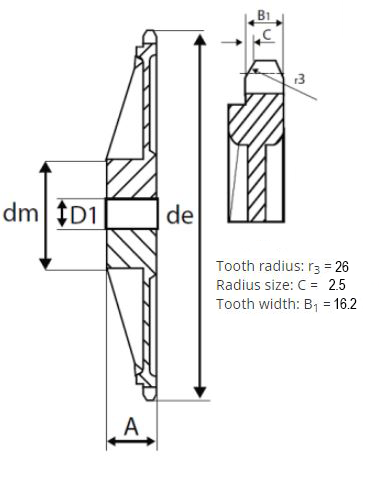

1 " (16B) British Standard pitch sprockets. Manufactured in cast iron.
16B-1 76T Cast Iron Sprocket (8SR76C)
16B-1 76T Cast Iron Sprocket (8SR76C)
| Part No. | 7826-344 |
| Code | 8SR76C |
| No. teeth | 76 |
| Outside dia. de | 627 |
| Pitch dia. dp | 614.65 |
| Boss dia. | 140 |
| Bore D1* | 34 |
| Overall Width A | 80 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
