5/8" (10B) British Standard pitch sprockets. Manufactured in Steel EN8, 080M40/080M46, C45

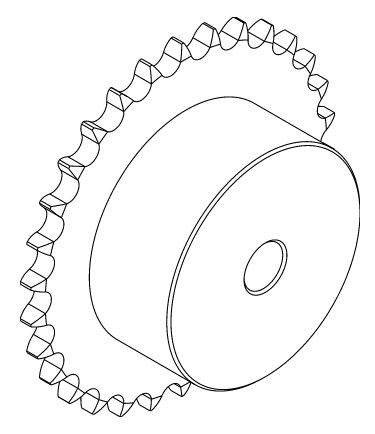

10B-1 30T Steel Sprocket (5SR30)
10B-1 30T Steel Sprocket (5SR30)
| Part No. | 7824-254 |
| Code | 5SR30 |
| No. teeth | 30 |
| Outside dia. de | 158.8 |
| Pitch dia. dp | 151.87 |
| Boss dia. | 90 |
| Bore D1* | 20 |
| Overall Width A | 35 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
