5/8" (10B) British Standard pitch sprockets. Manufactured in Steel EN8, 080M40/080M46, C45

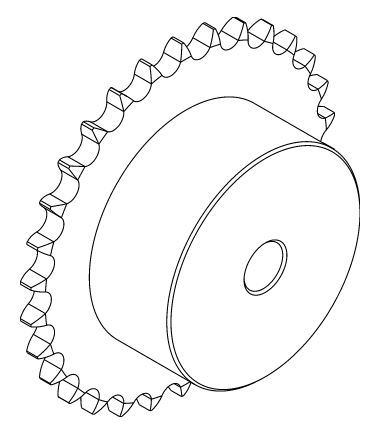

10B-1 20T Steel Sprocket (5SR20)
10B-1 20T Steel Sprocket (5SR20)
| Part No. | 7824-230 |
| Code | 5SR20 |
| No. teeth | 20 |
| Outside dia. de | 108.4 |
| Pitch dia. dp | 101.49 |
| Boss dia. | 75 |
| Bore D1* | 14 |
| Overall Width A | 30 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
