1/2" (083) British Standard pitch sprockets which are narrower than the 08B but wider than the 081 1/2" sprockets. Manufactured in Steel EN8, 080M40/080M46, C45
083-1 8T Steel Speocket (2SR8)
083-1 8T Steel Speocket (2SR8)

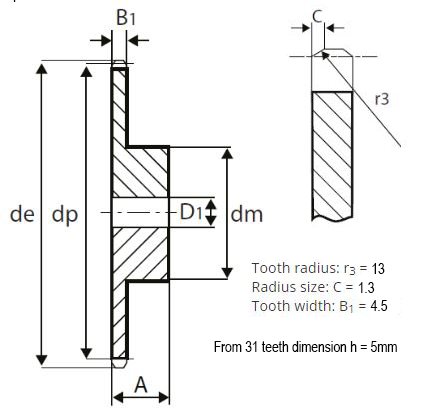

| Part No. | 7823-530 |
| Code | 2SR8 |
| No. teeth | 8 |
| Outside dia. de | 38.5 |
| Pitch dia. dp | 33.18 |
| Boss dia. | 21 |
| Bore D1* | 8 |
| Overall Width A | 14 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
