8mm (05B) British Standard pitch platewheel sprockets. Manufactured in Steel EN8, 080M40/080M46, C45
05B-1 25T Steel Platewheel (8MM25P)
05B-1 25T Steel Platewheel (8MM25P)

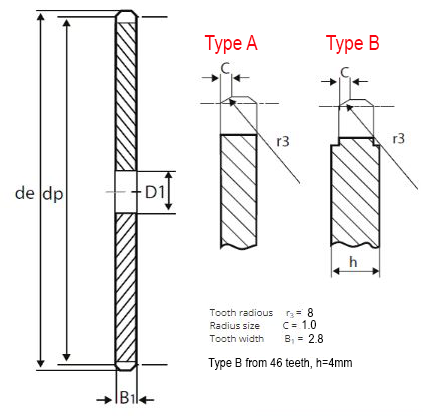

| Part No. | 7821-123 |
| Code | 8MM25P |
| No. Teeth | 25 |
| Outside dia. de | 67.5 |
| Pitch dia. Dp | 63.83 |
| Simplex D1 | 8 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
