Triplex 1" (16B) British Standard pitch sprocket. Manufactured in cast iron.
16B-3 57T Cast Iron Sprocket (8TR57C)
16B-3 57T Cast Iron Sprocket (8TR57C)
| Part No. | 7826-517 |
| Code | 8TR57C |
| No. teeth | 57 |

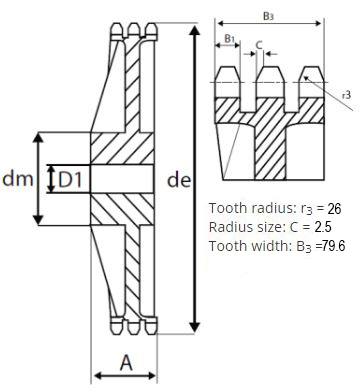

| Outside dia. de | 474 |
| Pitch dia. dp | 461.07 |
| Boss dia. | 165 |
| Bore D1* | 44 |
| Overall Width A | 100 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
