Triplex 1" (16B) British Standard pitch sprocket. Manufactured in cast iron.

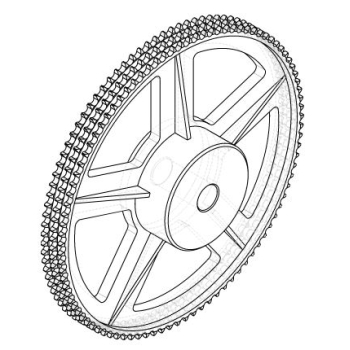

16B-3 45T Cast Iron Sprocket (8TR45C)
16B-3 45T Cast Iron Sprocket (8TR45C)
| Part No. | 7826-516 |
| Code | 8TR45C |
| No. teeth | 45 |
| Outside dia. de | 377.1 |
| Pitch dia. dp | 364.12 |
| Boss dia. | 160 |
| Bore D1* | 44 |
| Overall Width A | 100 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
