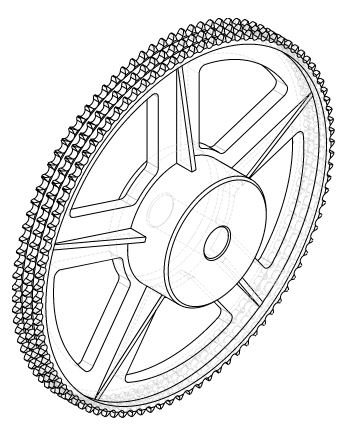

Triplex 1" (16B) British Standard pitch sprocket. Manufactured in cast iron.

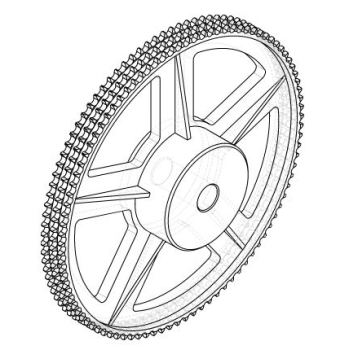

16B-3 76T Cast Iron Sprocket (8TR76C)
16B-3 76T Cast Iron Sprocket (8TR76C)
| Part No. | 7826-518 |
| Code | 8TR76C |
| No. teeth | 76 |
| Outside dia. de | 627 |
| Pitch dia. dp | 614.65 |
| Boss dia. | 200 |
| Bore D1* | 44 |
| Overall Width A | 110 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
