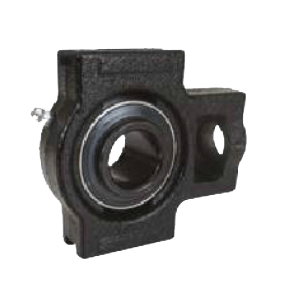

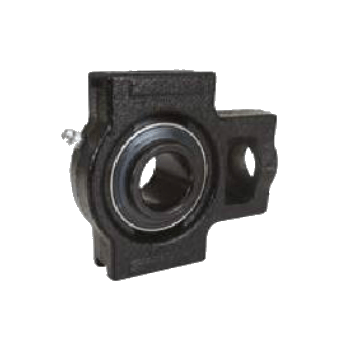

Take up cast iron bearing housing complete with steel bearing insert for mounting inside a take-up frame
UCT 211 55mm, Take Up Block Bearing (UCT/211)
UCT 211 55mm, Take Up Block Bearing (UCT/211)
| Part Number | 7910-610 |
| Code | UCT/211 |
| UCT | 211 |
| Bore size (mm) | 55 |
| C1 | 25 |
| T2 | 21 |
| Q2 | 102 |
| C2 | 64 |
| C | 35 |
| T3 | 95 |
| L1 | 22 |
| Q1 | 130 |
| Q | 146 |
| T | 171 |
| L2 | 38 |
| L | 64 |
| q | 65 |
| T1 | 106 |
| S | 55.6 |
| F | 22.2 |
| Bearing no. | UC211 |
| Housing no. | T211 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
