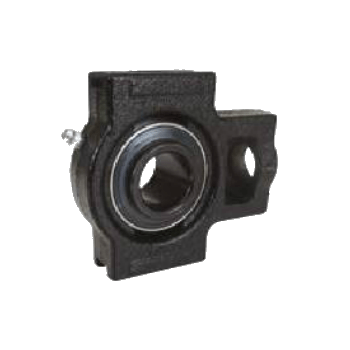

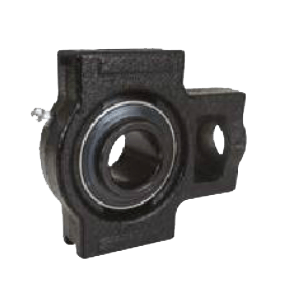

Take up cast iron bearing housing complete with steel bearing insert for mounting inside a take-up frame
UCT 210 50mm, Take Up Block Bearing (UCT/210)
UCT 210 50mm, Take Up Block Bearing (UCT/210)
| Part Number | 7910-609 |
| Code | UCT/210 |
| UCT | 210 |
| Bore size (mm) | 50 |
| C1 | 19 |
| T2 | 18 |
| Q2 | 83 |
| C2 | 49 |
| C | 29 |
| T3 | 86 |
| L1 | 16 |
| Q1 | 102 |
| Q | 117 |
| T | 151 |
| L2 | 37 |
| L | 49 |
| q | 59 |
| T1 | 92 |
| S | 51.6 |
| F | 19 |
| Bearing no. | UC210 |
| Housing no. | T210 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
