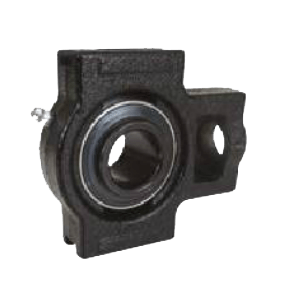

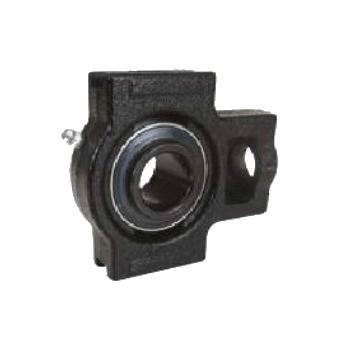

Take up cast iron bearing housing complete with steel bearing insert for mounting inside a take-up frame
UCT 212 60mm, Take Up Block Bearing (UCT/212)
UCT 212 60mm, Take Up Block Bearing (UCT/212)
| Part Number | 7910-611 |
| Code | UCT/212 |
| UCT | 212 |
| Bore size (mm) | 60 |
| C1 | 32 |
| T2 | 21 |
| Q2 | 102 |
| C2 | 64 |
| C | 35 |
| T3 | 102 |
| L1 | 22 |
| Q1 | 130 |
| Q | 146 |
| T | 194 |
| L2 | 42 |
| L | 64 |
| q | 75 |
| T1 | 119 |
| S | 65.1 |
| F | 25.4 |
| Bearing no. | UC212 |
| Housing no. | T212 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
