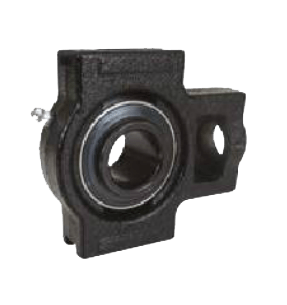

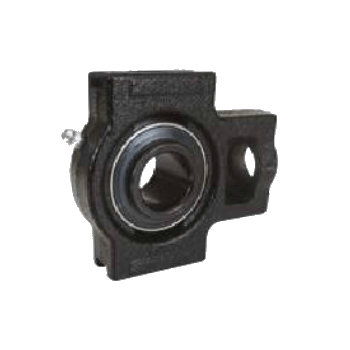

Take up cast iron bearing housing complete with steel bearing insert for mounting inside a take-up frame
UCT 207 35mm, Take Up Block Bearing (UCT/207)
UCT 207 35mm, Take Up Block Bearing (UCT/207)

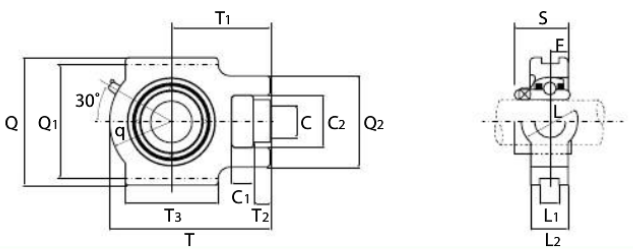

| Part Number | 7910-606 |
| Code | UCT/207 |
| UCT | 207 |
| Bore size (mm) | 35 |
| C1 | 16 |
| T2 | 15 |
| Q2 | 64 |
| C2 | 37 |
| C | 22 |
| T3 | 64 |
| L1 | 12 |
| Q1 | 102 |
| Q | 129 |
| T | 129 |
| L2 | 30 |
| L | 37 |
| q | 51 |
| T1 | 78 |
| S | 42.9 |
| F | 17.5 |
| Bearing no. | UC207 |
| Housing no. | T207 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
