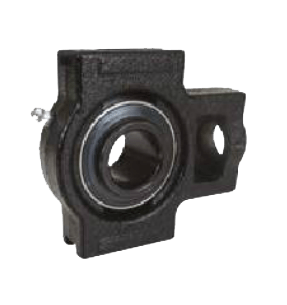

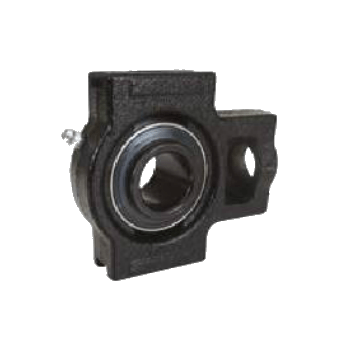

Take up cast iron bearing housing complete with steel bearing insert for mounting inside a take-up frame
UCT 208 40mm, Take Up Block Bearing (UCT/208)
UCT 208 40mm, Take Up Block Bearing (UCT/208)
| Part Number | 7910-607 |
| Code | UCT/208 |
| UCT | 208 |
| Bore size (mm) | 40 |
| C1 | 19 |
| T2 | 18 |
| Q2 | 83 |
| C2 | 49 |
| C | 29 |
| T3 | 83 |
| L1 | 16 |
| Q1 | 102 |
| Q | 114 |
| T | 144 |
| L2 | 33 |
| L | 49 |
| q | 56 |
| T1 | 88 |
| S | 49.2 |
| F | 19 |
| Bearing no. | UC208 |
| Housing no. | T208 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
