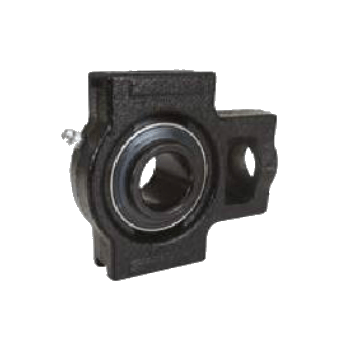

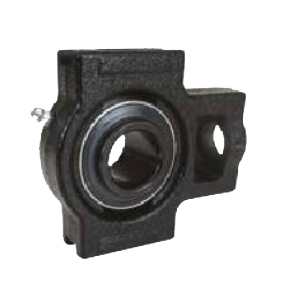

Take up cast iron bearing housing complete with steel bearing insert for mounting inside a take-up frame
UCT 206 30mm, Take Up Block Bearing (UCT/206)
UCT 206 30mm, Take Up Block Bearing (UCT/206)
| Part Number | 7910-605 |
| Code | UCT/206 |
| UCT | 206 |
| Bore size (mm) | 30 |
| C1 | 16 |
| T2 | 12 |
| Q2 | 56 |
| C2 | 37 |
| C | 22 |
| T3 | 57 |
| L1 | 12 |
| Q1 | 89 |
| Q | 102 |
| T | 113 |
| L2 | 28 |
| L | 37 |
| q | 43 |
| T1 | 70 |
| S | 38.1 |
| F | 15.9 |
| Bearing no. | UC206 |
| Housing no. | T206 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
