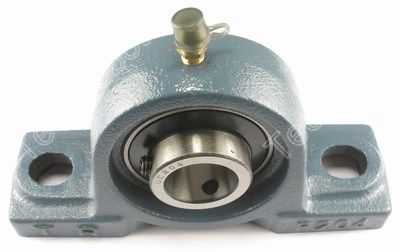

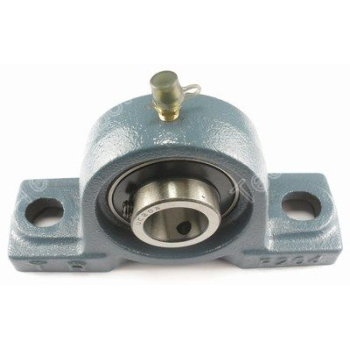

2 Bolt pillow block cast iron bearing housing complete with steel bearing insert
UCP 216 80mm, Pillow Block Bearing (UCP/216)
UCP 216 80mm, Pillow Block Bearing (UCP/216)
| Part Number | 7910-315 |
| Code | UCP/216 |
| UCP | 216 |
| Bore (mm) | 80 |
| c | 88.9 |
| l | 292 |
| r | 232 |
| s | 78 |
| F1 | 25 |
| F2 | 28 |
| e | 30 |
| n | 175 |
| A | 82.6 |
| o | 33.3 |
| Bearing No. | UC216 |
| Bolt size | M20 |
| Housing No. | P216 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
