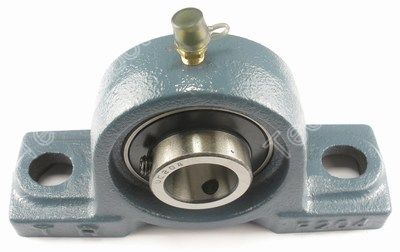

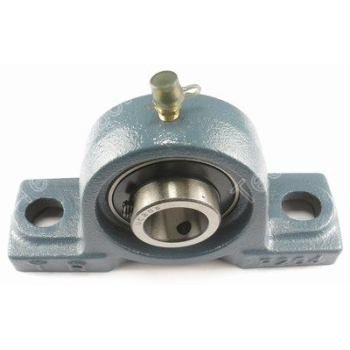

2 Bolt pillow block cast iron bearing housing complete with steel bearing insert
UCP 215 75mm, Pillow Block Bearing (UCP/215)
UCP 215 75mm, Pillow Block Bearing (UCP/215)
Part Number | 7910-314 |
Code | UCP/215 |
UCP | 215 |
Bore (mm) | 75 |
c | 82.6 |
l | 275 |
r | 217 |
s | 74 |
F1 | 25 |
F2 | 28 |
e | 28 |
n | 163 |
A | 77.8 |
o | 33.3 |
Bearing No. | UC215 |
Bolt size | M20 |
Housing No. | P215 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
