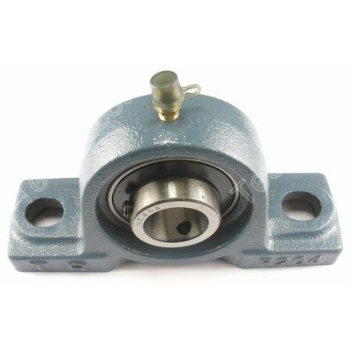

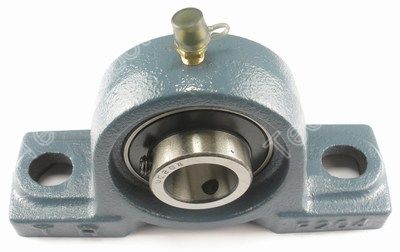

2 Bolt pillow block cast iron bearing housing complete with steel bearing insert
UCP 217 85mm, Pillow Block Bearing (UCP/217)
UCP 217 85mm, Pillow Block Bearing (UCP/217)
Part Number | 7910-316 |
Code | UCP/217 |
UCP | 217 |
Bore (mm) | 85 |
c | 95.2 |
l | 310 |
r | 247 |
s | 83 |
F1 | 25 |
F2 | 28 |
e | 32 |
n | 187 |
A | 85.7 |
o | 34.1 |
Bearing No. | UC217 |
Bolt size | M20 |
Housing No. | P217 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
