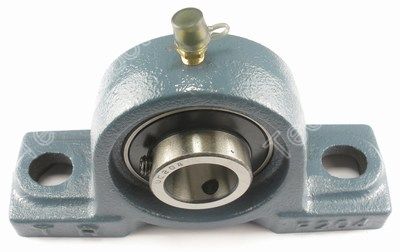

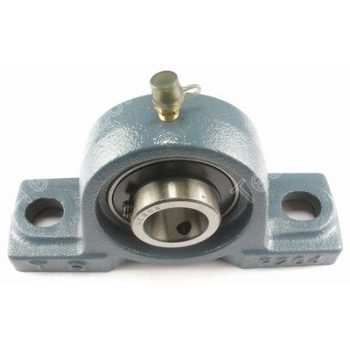

2 Bolt pillow block cast iron bearing housing complete with steel bearing insert
UCP 214 70mm, Pillow Block Bearing (UCP/214)
UCP 214 70mm, Pillow Block Bearing (UCP/214)
Part Number | 7910-313 |
Code | UCP/214 |
UCP | 214 |
Bore (mm) | 70 |
c | 79.4 |
l | 266 |
r | 210 |
s | 72 |
F1 | 25 |
F2 | 28 |
e | 27 |
n | 157 |
A | 74.6 |
o | 30.2 |
Bearing No. | UC214 |
Bolt size | M20 |
Housing No. | P214 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
