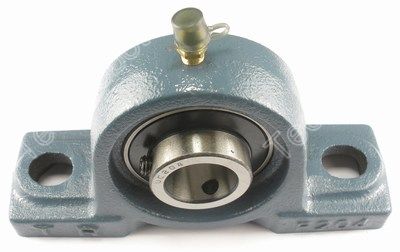

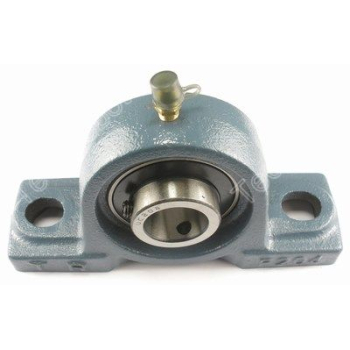

2 Bolt pillow block cast iron bearing housing complete with steel bearing insert
UCP 213 65mm, Pillow Block Bearing (UCP/213)
UCP 213 65mm, Pillow Block Bearing (UCP/213)
Part Number | 7910-312 |
Code | UCP/213 |
UCP | 213 |
Bore (mm) | 65 |
c | 76.2 |
l | 265 |
r | 203 |
s | 70 |
F1 | 25 |
F2 | 28 |
e | 27 |
n | 151 |
A | 65.1 |
o | 25.4 |
Bearing No. | UC213 |
Bolt size | M20 |
Housing No. | P213 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
