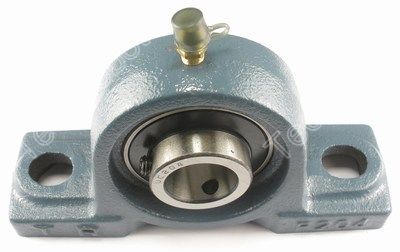

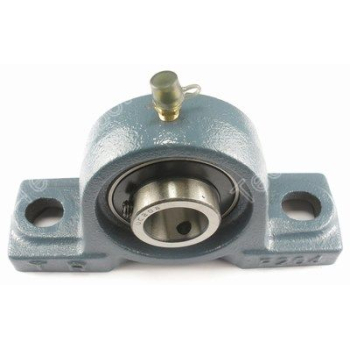

2 Bolt pillow block cast iron bearing housing complete with steel bearing insert
UCP 205 25mm, Pillow Block Bearing (UCP/205)
UCP 205 25mm, Pillow Block Bearing (UCP/205)
Part Number | 7910-304 |
Code | UCP/205 |
UCP | 205 |
Bore (mm) | 25 |
c | 36.5 |
l | 140 |
r | 105 |
s | 38 |
F1 | 13 |
F2 | 16 |
e | 15 |
n | 71 |
A | 34 |
o | 14.3 |
Bearing No. | UC205 |
Bolt size | M10 |
Housing No. | P205 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
