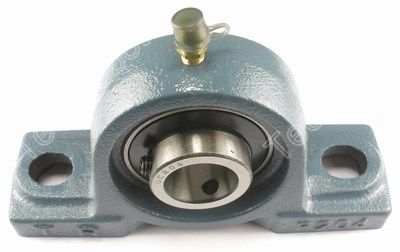

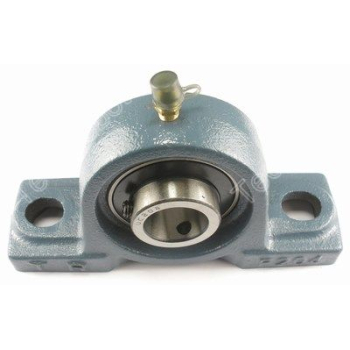

2 Bolt pillow block cast iron bearing housing complete with steel bearing insert
UCP 206 30mm, Pillow Block Bearing (UCP/206)
UCP 206 30mm, Pillow Block Bearing (UCP/206)

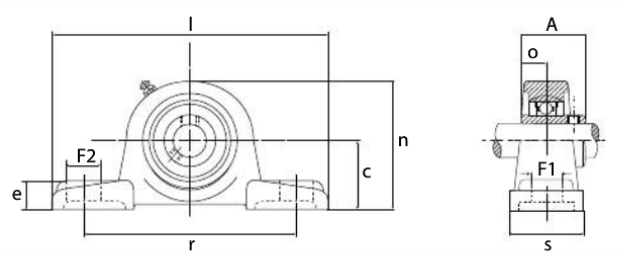

| Part Number | 7910-305 |
| Code | UCP/206 |
| UCP | 206 |
| Bore (mm) | 30 |
| c | 42.9 |
| l | 165 |
| r | 121 |
| s | 48 |
| F1 | 17 |
| F2 | 20 |
| e | 17 |
| n | 83 |
| A | 38.1 |
| o | 15.9 |
| Bearing No. | UC206 |
| Bolt size | M14 |
| Housing No. | P206 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
