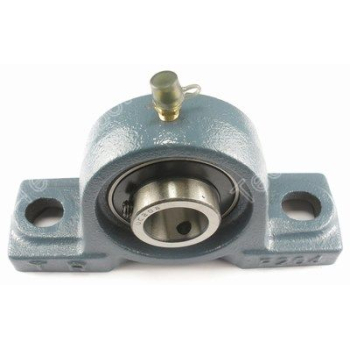

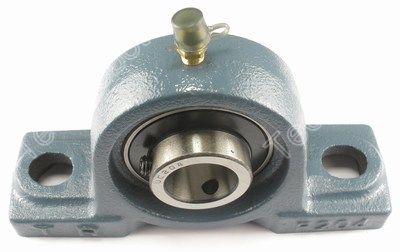

2 Bolt pillow block cast iron bearing housing complete with steel bearing insert
UCP 204 20mm, Pillow Block Bearing (UCP/204)
UCP 204 20mm, Pillow Block Bearing (UCP/204)
Part Number | 7910-303 |
Code | UCP/204 |
UCP | 204 |
Bore (mm) | 20 |
c | 33.3 |
l | 127 |
r | 95 |
s | 38 |
F1 | 13 |
F2 | 16 |
e | 14 |
n | 65 |
A | 31 |
o | 12.7 |
Bearing No. | UC204 |
Bolt size | M10 |
Housing No. | P204 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
