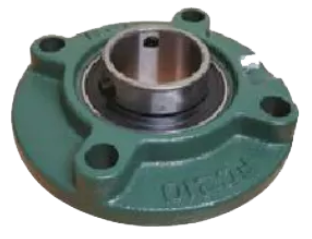

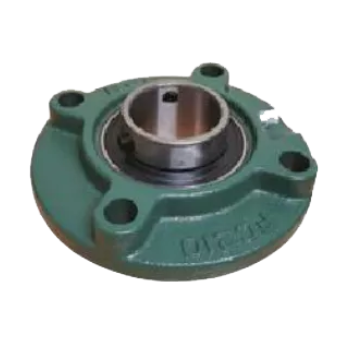

Round cast iron bearing housing complete with steel bearing insert
UCFC 212 60mm, 4-Bolt Round Flange Bearing (UCFC/212)
UCFC 212 60mm, 4-Bolt Round Flange Bearing (UCFC/212)
| Part Number | 7910-111 |
| Code | UCFC/212 |
| UCFC | 212 |
| Bore (mm) | 60 |
| l | 195 |
| z | 160 |
| r | 113.1 |
| v | 17 |
| U | 19 |
| y | 12 |
| w | 15 |
| e | 36 |
| h | 135 |
| m | 56.7 |
| A | 65.1 |
| o | 25.4 |
| Bearing No. | UC212 |
| Bolt size | M16 |
| Housing No. | FC212 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
