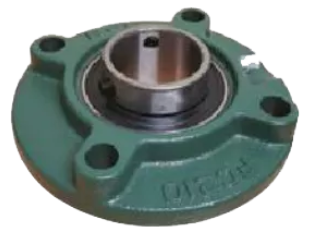

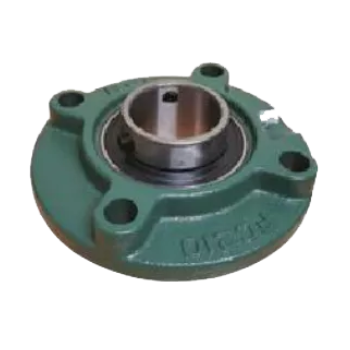

Round cast iron bearing housing complete with steel bearing insert
UCFC 213 65mm, 4-Bolt Round Flange Bearing (UCFC/213)
UCFC 213 65mm, 4-Bolt Round Flange Bearing (UCFC/213)
| Part Number | 7910-112 |
| Code | UCFC/213 |
| UCFC | 213 |
| Bore (mm) | 65 |
| l | 205 |
| z | 170 |
| r | 120.2 |
| v | 16 |
| U | 19 |
| y | 14 |
| w | 15 |
| e | 36 |
| h | 145 |
| m | 55.7 |
| A | 65.1 |
| o | 25.4 |
| Bearing No. | UC213 |
| Bolt size | M16 |
| Housing No. | FC213 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
