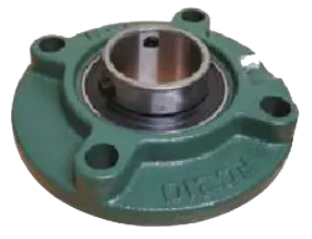

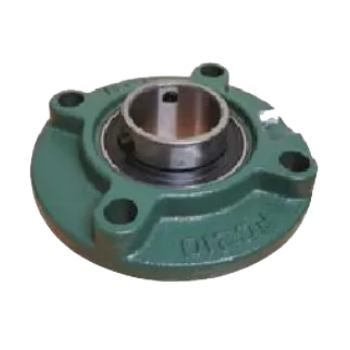

Round cast iron bearing housing complete with steel bearing insert
UCFC 211 55mm, 4-Bolt Round Flange Bearing (UCFC/211)
UCFC 211 55mm, 4-Bolt Round Flange Bearing (UCFC/211)
| Part Number | 7910-110 |
| Code | UCFC/211 |
| UCFC | 211 |
| Bore (mm) | 55 |
| l | 185 |
| z | 150 |
| r | 106.1 |
| v | 13 |
| U | 19 |
| y | 12 |
| w | 15 |
| e | 31 |
| h | 125 |
| m | 46.4 |
| A | 55.6 |
| o | 22.2 |
| Bearing No. | UC211 |
| Bolt size | M16 |
| Housing No. | FC211 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
