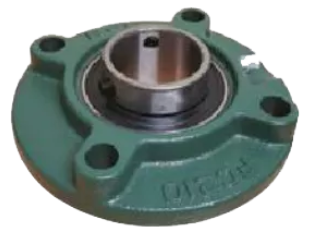

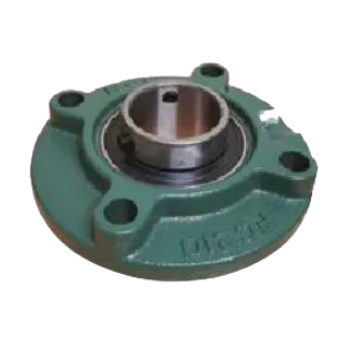

Round cast iron bearing housing complete with steel bearing insert
UCFC 210 50mm, 4-Bolt Round Flange Bearing (UCFC/210)
UCFC 210 50mm, 4-Bolt Round Flange Bearing (UCFC/210)
| Part Number | 7910-109 |
| Code | UCFC/210 |
| UCFC | 210 |
| Bore (mm) | 50 |
| l | 165 |
| z | 138 |
| r | 97.6 |
| v | 10 |
| U | 16 |
| y | 12 |
| w | 14 |
| e | 28 |
| h | 110 |
| m | 42.6 |
| A | 51.6 |
| o | 19 |
| Bearing No. | UC210 |
| Bolt size | M14 |
| Housing No. | FC210 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
