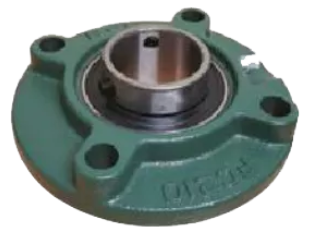

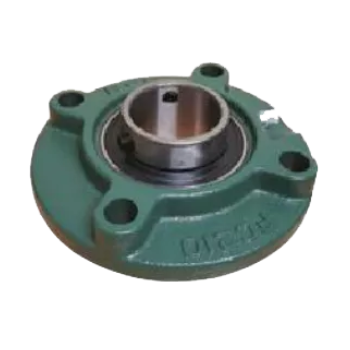

Round cast iron bearing housing complete with steel bearing insert
UCFC 209 45mm, 4-Bolt Round Flange Bearing (UCFC/209)
UCFC 209 45mm, 4-Bolt Round Flange Bearing (UCFC/209)
| Part Number | 7910-108 |
| Code | UCFC/209 |
| UCFC | 209 |
| Bore (mm) | 45 |
| l | 160 |
| z | 132 |
| r | 93.3 |
| v | 10 |
| U | 16 |
| y | 12 |
| w | 14 |
| e | 26 |
| h | 105 |
| m | 40.2 |
| A | 49.2 |
| o | 19 |
| Bearing No. | UC209 |
| Bolt size | M14 |
| Housing No. | FC209 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
