Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40, 080M46, 212A42), normalised or equivalent

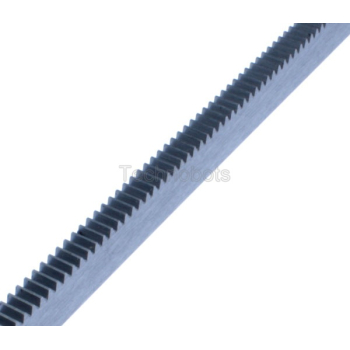

Steel Square Rack Mod 1 1/2"x1/2"x1m (SR10/12.7/1)
Steel Square Rack Mod 1 1/2"x1/2"x1m (SR10/12.7/1)
| Part No. | 7700-238 |
| Code | SR10/12.7/1 |
| Pitch module | 1 |
| Width B | 12.7 |
| Height A | 12.7 |
| Height to Pitch Line hp | 11.7 |
| Length L | 1000 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
