Metric Stainless Steel Rectangular Racks



  • Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent
  • Standard tolerances, unless otherwise stated ±0.25mm
  • All dimensions in mm
  • Stainless Steel AISI 303/304

All dimensions subject to change. If a dimension is critical to your application please contact us.

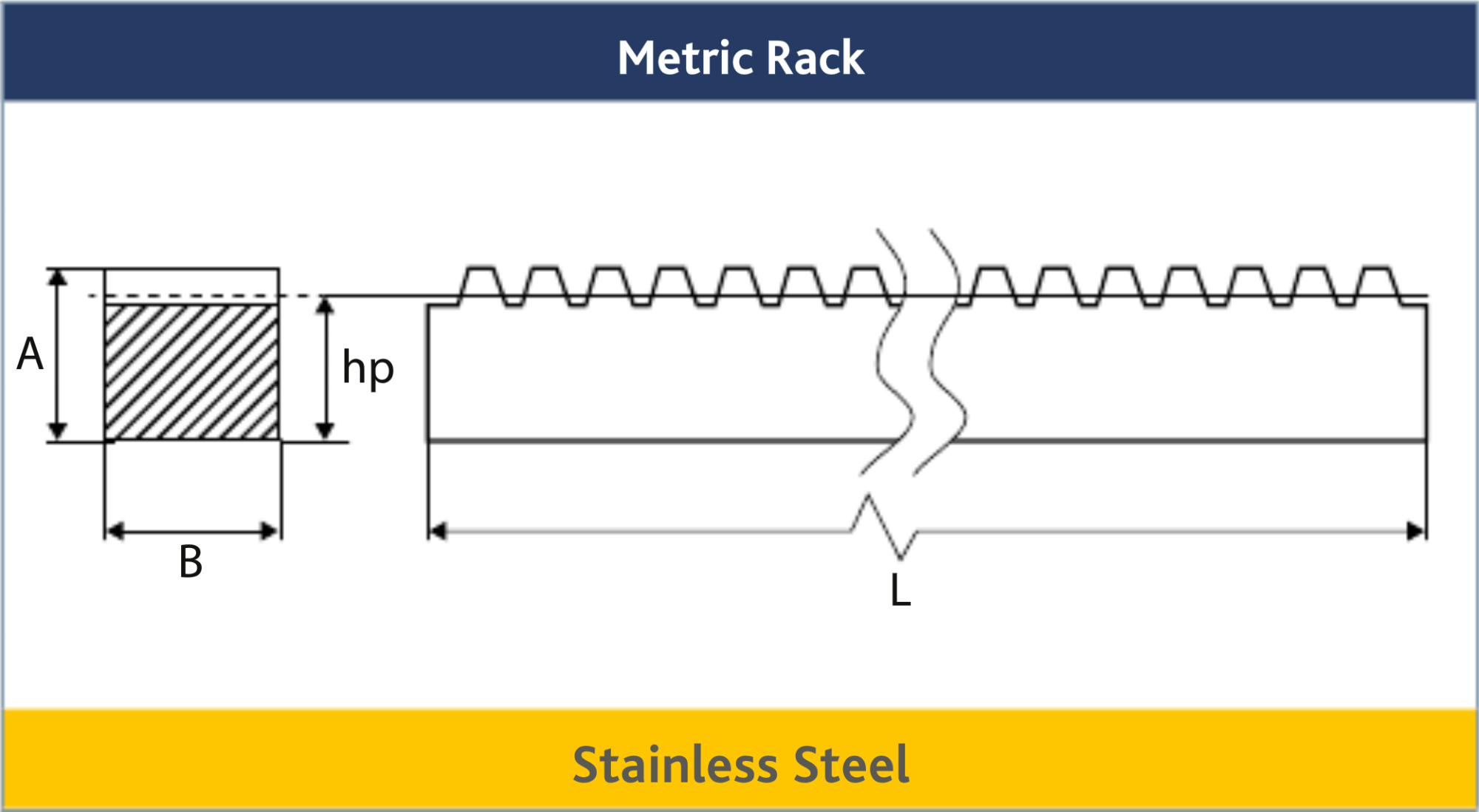

Part No. Code Pitch module Width B Height A Height to Pitch Line hp Length L
7700-301 STR10/10/.5 1 10 10 9 500
7700-302 STR10/10/1 1 10 10 9 1000
7700-303 STR10/10/2 1 10 10 9 2000
7700-316 STR10/10H/.5 1 10 12 11 500
7700-304 STR10/15/.5 1 15 15 14 500
7700-306 STR15/15/.5 1.5 15 15 13.5 500
7700-307 STR15/15/1 1.5 15 15 13.5 1000
7700-308 STR15/15/2 1.5 15 15 13.5 2000
7700-310 STR20/20/.5 2 20 20 18 500
7700-311 STR20/20/1 2 20 20 18 1000
Contact G&S STR20/20/2 2 20 20 18 2000
7700-312 STR25/25/.5 2.5 25 25 22.5 500
7700-313 STR25/25/1 2.5 25 25 22.5 1000
7700-314 STR30/30/.5 3 30 30 27 500
Contact G&S STR30/30/1 3 30 30 27 1000
7700-315 STR30/30/2 3 30 30 27 2000



£38.10 incl VAT (£31.75 exc. tax)
7700-301
S/S Rectangular Rack Mod 1 10x10mmx0.5m. For dimensions and product description, click button below. We source our special order products from the largest... read more
Usually dispatched in 2-5 working days
+
Add to wish list

£76.10 incl VAT (£63.42 exc. tax)
7700-302
S/S Rectangular Rack Mod 1 10x10mmx1m. For dimensions and product description, click button below. We source our special order products from the largest... read more
Usually dispatched in 2-5 working days
+
Add to wish list

£168.72 incl VAT (£140.60 exc. tax)
7700-303
S/S Rectangular Rack Mod 1 10x10mmx2m. For dimensions and product description, click button below. We source our special order products from the largest... read more
Usually dispatched in 2-5 working days
+
Add to wish list

£55.46 incl VAT (£46.22 exc. tax)
7700-304
S/S Rectangular Rack Mod 1 15x15mmx0.5m. For dimensions and product description, click button below. We source our special order products from the largest... read more
Usually dispatched in 2-5 working days
+
Add to wish list

£58.38 incl VAT (£48.65 exc. tax)
7700-306
S/S Rectangular Rack Mod 1.5 15x15mmx0.5m. For dimensions and product description, click button below. We source our special order products from the largest... read more
Usually dispatched in 2-5 working days
+
Add to wish list

£104.51 incl VAT (£87.09 exc. tax)
7700-307
S/S Rectangular Rack Mod 1.5 15x15mmx1m. For dimensions and product description, click button below. We source our special order products from the largest... read more
Usually dispatched in 2-5 working days
+
Add to wish list

£222.91 incl VAT (£185.76 exc. tax)
7700-308
S/S Rectangular Rack Mod 1.5 15x15mmx2m. For dimensions and product description, click button below. We source our special order products from the largest... read more
Usually dispatched in 2-5 working days
+
Add to wish list

£98.29 incl VAT (£81.91 exc. tax)
7700-310
S/S Rectangular Rack Mod 2 20x20mmx0.5m. For dimensions and product description, click button below. We source our special order products from the largest... read more
Usually dispatched in 2-5 working days
+
Add to wish list

£196.52 incl VAT (£163.77 exc. tax)
7700-311
S/S Rectangular Rack Mod 2 20x20mmx1m. For dimensions and product description, click button below. We source our special order products from the largest... read more
Usually dispatched in 2-5 working days
+
Add to wish list

£126.16 incl VAT (£105.13 exc. tax)
7700-312
S/S Rectangular Rack Mod 2.5 25x25mmx0.5m. For dimensions and product description, click button below. We source our special order products from the largest... read more
Usually dispatched in 2-5 working days
+
Add to wish list

£235.02 incl VAT (£195.85 exc. tax)
7700-313
S/S Rectangular Rack Mod 2.5 25x25mmx1m. For dimensions and product description, click button below. We source our special order products from the largest... read more
Usually dispatched in 2-5 working days
+
Add to wish list

£145.91 incl VAT (£121.59 exc. tax)
7700-314
S/S Rectangular Rack Mod 3 30x30mmx0.5m. For dimensions and product description, click button below. We source our special order products from the largest... read more
Usually dispatched in 2-5 working days
+
Add to wish list

£490.20 incl VAT (£408.50 exc. tax)
7700-315
S/S Rectangular Rack Mod 3 30x30mmx2m. For dimensions and product description, click button below. We source our special order products from the largest... read more
Usually dispatched in 2-5 working days
+
Add to wish list

£76.78 incl VAT (£63.98 exc. tax)
7700-316
S/S Rectangular Rack Mod 1 10x12mmx0.5m. For dimensions and product description, click button below. We source our special order products from the largest... read more
Usually dispatched in 2-5 working days
+
Add to wish list
