SPZ 8 Groove V Pulleys taper bore for use with our taper bushes.

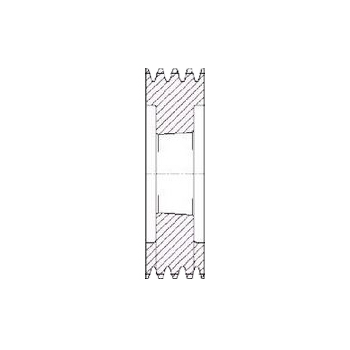

Spz224/8 V Pulley For 3020 T/L Bush (SPZ224/8)
Spz224/8 V Pulley For 3020 T/L Bush (SPZ224/8)
Part No. | 7804-783 |
Type | SPZ224/8 |
Diameter P (mm) | 224 |
Diameter O (mm) | 228 |
Style | 3 |
Bush | 3020 |
Bore ø max. | 75 |
E | |
J | 195 |
K | 24.5 |
L | 51 |
M | 24.5 |
N | |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
