SPZ 8 Groove V Pulleys taper bore for use with our taper bushes.
Spz250/8 V Pulley For 3020T/L Bush (SPZ250/8)
Spz250/8 V Pulley For 3020T/L Bush (SPZ250/8)
| Part No. | 7804-784 |
| Type | SPZ250/8 |
| Diameter P (mm) | 250 |
| Diameter O (mm) | 254 |

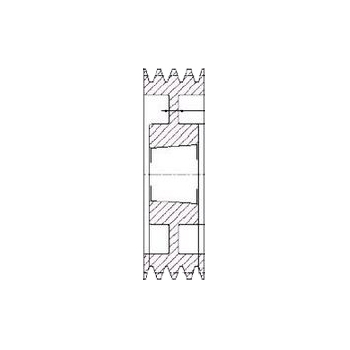

| Style | 6 |
| Bush | 3020 |
| Bore ø max. | 75 |
| E | 20 |
| J | 221 |
| K | 24.5 |
| L | 51 |
| M | 24.5 |
| N | 146 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
