SPZ 8 Groove V Pulleys taper bore for use with our taper bushes.
Spz200/8 V Pulley For 3020 T/L Bush (SPZ200/8)
Spz200/8 V Pulley For 3020 T/L Bush (SPZ200/8)
| Part No. | 7804-782 |
| Type | SPZ200/8 |
| Diameter P (mm) | 200 |
| Diameter O (mm) | 204 |

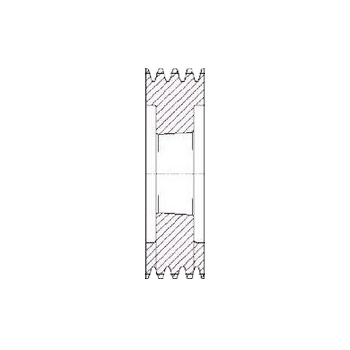

| Style | 3 |
| Bush | 3020 |
| Bore ø max. | 75 |
| E | |
| J | 171 |
| K | 24.5 |
| L | 51 |
| M | 24.5 |
| N | |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
