Timing Pulleys H100 (0.5" / 12.7mm pitch) for 25.4mm (1") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.
Pulley 44H100/3Wf 2012 T/L Bush (T44H100F)
Pulley 44H100/3Wf 2012 T/L Bush (T44H100F)
| Part No. | 7800-959 |
| Code | T44H100F |
| Material | Steel |

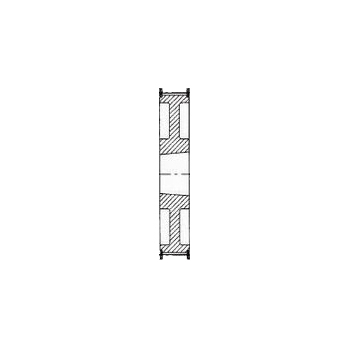

| Type | 6F |
| No.teeth | 44 |
| Bush | 2012 |
| Dp | 177.87 |
| De | 176.5 |
| Df | 184 |
| Dm | 106 |
| Di | 152 |
| F | 32 |
| S | 32 |
| R | |
| No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
