Timing Pulleys H100 (0.5" / 12.7mm pitch) for 25.4mm (1") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.
Pulley 48H100/3Wf For 2012 T/L Bush (T48H100F)
Pulley 48H100/3Wf For 2012 T/L Bush (T48H100F)
Part No. | 7800-963 |
Code | T48H100F |
Material | Steel |

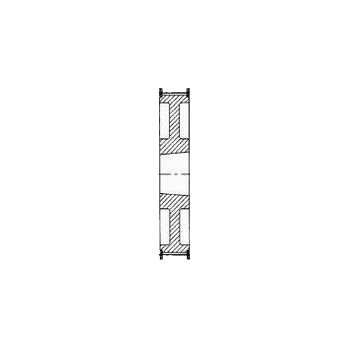

Type | 6F |
No.teeth | 48 |
Bush | 2012 |
Dp | 194.04 |
De | 192.67 |
Df | 200 |
Dm | 106 |
Di | 169 |
F | 32 |
S | 32 |
R | |
No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
