Timing Pulleys H100 (0.5" / 12.7mm pitch) for 25.4mm (1") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.
Pulley 40H100/5Wf For 1610 T/L Bush (T40H100F)
Pulley 40H100/5Wf For 1610 T/L Bush (T40H100F)
Part No. | 7800-955 |
Code | T40H100F |
Material | Steel |

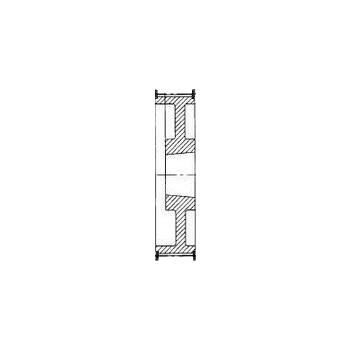

Type | 10F |
No.teeth | 40 |
Bush | 1610 |
Dp | 161.7 |
De | 160.33 |
Df | 168 |
Dm | 92 |
Di | 138 |
F | 32 |
S | 25 |
R | 7 |
No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
