Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with imperial insert with grub screw. Polycarbonate - Glass Filled.

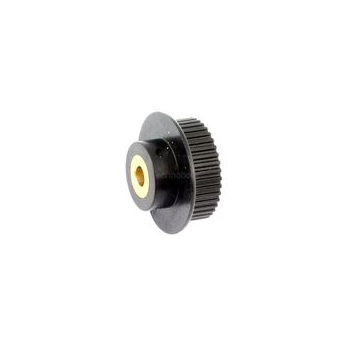

Plastic 72MXL025 Type C 1/4"Brass Insert (PP72MXL025I)
Plastic 72MXL025 Type C 1/4"Brass Insert (PP72MXL025I)
Part No. | 7800-649 |
Code | PP72MXL025I |
Insert | Brass |
Type | C |
No. Teeth | 72 |
Dp | 1.833 |
De | 1.813 |
Df | 2 |
Dm | 0.688 |
Fw | 0.312 |
L | 0.69 |
Bore (d) | 0.25 |
Pw | 0.437 |
GrubScrew Gs | 1 x 6-32 UNC |
K | 0.125 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
