Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with metric insert with grub screw. Polycarbonate - Glass Filled.

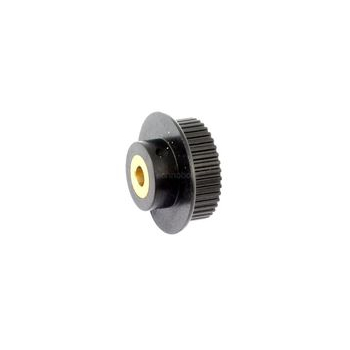

Plastic 65MXL025 Type C 6mm Bore, Brass Insert (PP65MXL025MI)
Plastic 65MXL025 Type C 6mm Bore, Brass Insert (PP65MXL025MI)
Part No. | 7800-648 |
Code | PP65MXL025MI |
Insert | Brass |
Type | C |
No. Teeth | 65 |
Dp | 42.04 |
De | 41.53 |
Df | 46 |
Dm | 17 |
Fw | 8 |
L | 17.5 |
Bore (d) | 6 |
Pw | 11 |
GrubScrew Gs | 1 x M3 |
K | 3 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
