Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with metric insert with grub screw. Polycarbonate - Glass Filled.

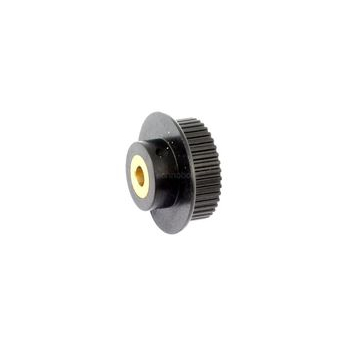

Plastic 72MXL025 Type C 6mm Bore, Brass Insert (PP72MXL025MI)
Plastic 72MXL025 Type C 6mm Bore, Brass Insert (PP72MXL025MI)
Part No. | 7800-651 |
Code | PP72MXL025MI |
Insert | Brass |

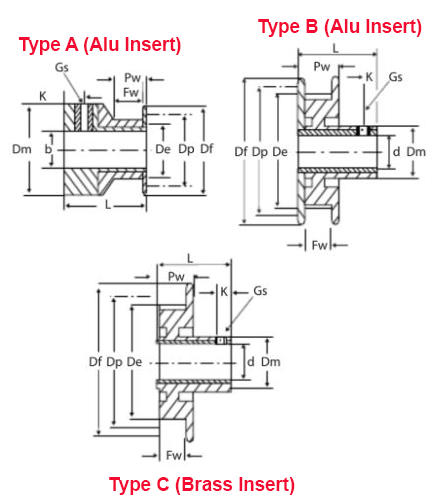

Type | C |
No. Teeth | 72 |
Dp | 46.56 |
De | 46.05 |
Df | 51 |
Dm | 17 |
Fw | 8 |
L | 17.5 |
Bore (d) | 6 |
Pw | 11 |
GrubScrew Gs | 1 x M3 |
K | 3 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
