Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with imperial insert with grub screw. Polycarbonate - Glass Filled.

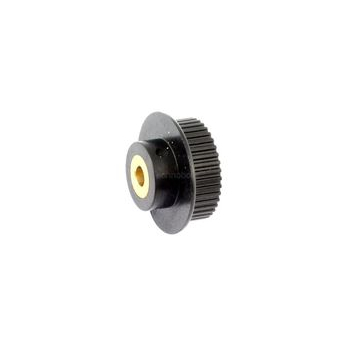

Plastic 40MXL025 Type C Imp, Aluminium Insert (PP40MXL025I)
Plastic 40MXL025 Type C Imp, Aluminium Insert (PP40MXL025I)
| Part No. | 7800-636 |
| Code | PP40MXL025I |
| Insert | Brass |
| Type | C |
| No. Teeth | 40 |
| Dp | 1.019 |
| De | 0.999 |
| Df | 1.19 |
| Dm | 0.688 |
| Fw | 0.312 |
| L | 0.69 |
| Bore (d) | 0.188 |
| Pw | 0.437 |
| GrubScrew Gs | 1 x 6-32 UNC |
| K | 0.125 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
