Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with metric insert with grub screw. Polycarbonate - Glass Filled.

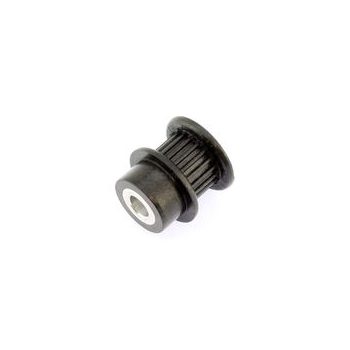

Plastic 32MXL025 Type B 5mm Bore, Aluminium Insert (PP32MXL025MI)
Plastic 32MXL025 Type B 5mm Bore, Aluminium Insert (PP32MXL025MI)
Part No. | 7800-631 |
Code | PP32MXL025MI |
Insert | Aluminium |
Type | B |
No. Teeth | 32 |
Dp | 20.7 |
De | 20.19 |
Df | 25 |
Dm | 13 |
Fw | 8 |
L | 17.5 |
Bore (d) | 5 |
Pw | 11 |
GrubScrew Gs | 1 x M3 |
K | 3 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
