Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with metric insert with grub screw. Polycarbonate - Glass Filled.

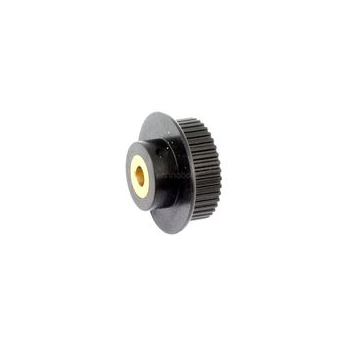

Plastic 42MXL025 Type C 5mm Bore, Brass Insert (PP42MXL025MI)
Plastic 42MXL025 Type C 5mm Bore, Brass Insert (PP42MXL025MI)
| Part No. | 7800-640 |
| Code | PP42MXL025MI |
| Insert | Brass |
| Type | C |
| No. Teeth | 42 |
| Dp | 27.18 |
| De | 26.67 |
| Df | 31 |
| Dm | 17 |
| Fw | 8 |
| L | 17.5 |
| Bore (d) | 5 |
| Pw | 11 |
| GrubScrew Gs | 1 x M3 |
| K | 3 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
