Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40, 080M46, 212A42), normalised or equivalent

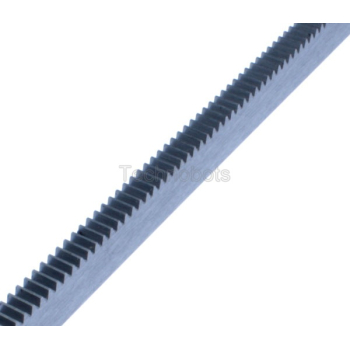

Mod 4 Rack 40x40x1M Ind Hardened Teeth (SR40/40/1CIHT)
Mod 4 Rack 40x40x1M Ind Hardened Teeth (SR40/40/1CIHT)
| Part No. | 7700-376 |
| Code | SR40/40/1CIHT |
| Pitch module | 4 |
| Width B (h11) | 40 |
| Height A (h11) | 40 |
| Height to Pitch Line hp | 36 |
| Tolerance of cut for continuous mounting | -0.05/-1.32 |
| No. teeth | 80 |
| Length L | 1005.31 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
