Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40, 080M46, 212A42), normalised or equivalent

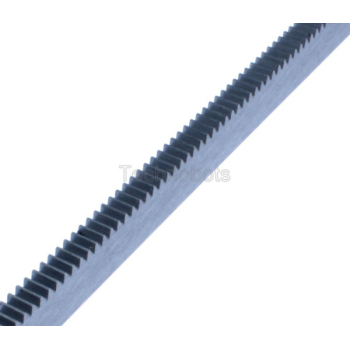

Cont. Mounting Steel Rectangular Rack Mod 2.5 25x25mmx2m (SR25/25/2CIHT)
Cont. Mounting Steel Rectangular Rack Mod 2.5 25x25mmx2m (SR25/25/2CIHT)
Part No. | 7700-370 |
Code | SR25/25/2CIHT |
Pitch module | 2.5 |
Width B (h11) | 25 |
Height A (h11) | 25 |
Height to Pitch Line hp | 22.5 |
Tolerance of cut for continuous mounting | -0.05/-0.82 |
No. teeth | 255 |
Length L | 2002.77 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
