Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304
S/S Rectangular Rack Mod 1 10x10mmx0.5m (STR10/10/.5)
S/S Rectangular Rack Mod 1 10x10mmx0.5m (STR10/10/.5)

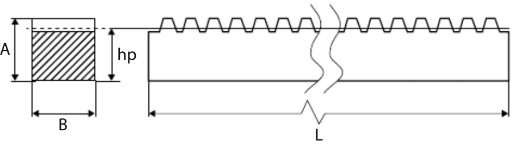

| Part No. | 7700-301 |
| Code | STR10/10/.5 |
| Pitch module | 1 |
| Width B | 10 |
| Height A | 10 |
| Height to Pitch Line hp | 9 |
| Length L | 500 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
