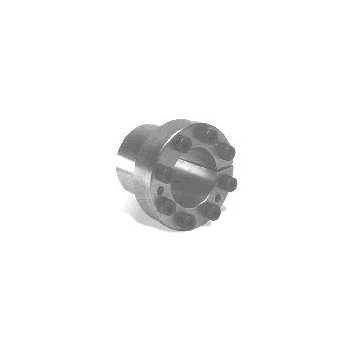

Drivelock® 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mm
Drivelock 80 11x18mm (DL80/11)
Drivelock 80 11x18mm (DL80/11)
| Part No. | 7931-103 |
| Code | DL80/11 |
| d (mm) | 11 |
| D (mm) | 18 |
| D1 (mm) | 32 |
| A (mm | 14 |
| B (mm | 27.5 |
| L (mm | 31.5 |
| M (mm) | M4 |
| Ts (Nm) | 5 |
| T( Nm) | 51 |
| F (kN) | 9 |
| p (N/mm2) | 100 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
