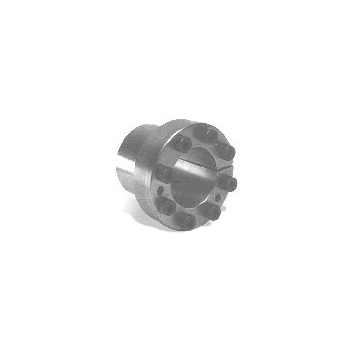

Drivelock® 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mm
Drivelock 80 12x18mm (DL80/12)
Drivelock 80 12x18mm (DL80/12)
Part No. | 7931-104 |
Code | DL80/12 |
d (mm) | 12 |
D (mm) | 18 |
D1 (mm) | 32 |
A (mm | 14 |
B (mm | 27.5 |
L (mm | 31.5 |
M (mm) | M4 |
Ts (Nm) | 5 |
T( Nm) | 56 |
F (kN) | 9 |
p (N/mm2) | 100 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
