Drivelock® 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mm

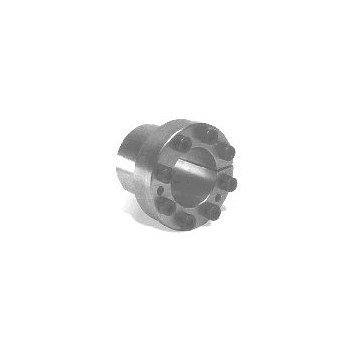

Drivelock 80 10x16 mm (DL80/10)
Drivelock 80 10x16 mm (DL80/10)
Part No. | 7931-101 |
Code | DL80/10 |
d (mm) | 10 |
D (mm) | 16 |
D1 (mm) | 28 |
A (mm | 14 |
B (mm | 27.5 |
L (mm | 31.5 |
M (mm) | M4 |
Ts (Nm) | 5 |
T( Nm) | 35 |
F (kN) | 7 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
