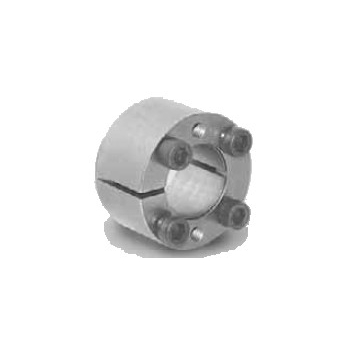

Drivelock® 61 Bushes are self centering, offer medium torques 5 to 1900 Nm and are available in bores from 5 to 50mm
Drivelock 61 20x38mm (DL61/20)
Drivelock 61 20x38mm (DL61/20)
Part No. | 7930-808 |
Code | DL61/20 |
d (h8) (mm) | 20 |
D (mm) | 38 |
L1 (mm) | 21 |
L (mm) | 26 |
B (mm) | M5 |
Ts Nm | 9.7 |
T Nm | 150 |
F kN | 15 |
p N/mm2 | 75 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
