Drivelock® 61 Bushes are self centering, offer medium torques 5 to 1900 Nm and are available in bores from 5 to 50mm

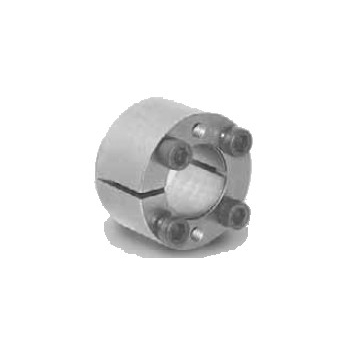

Drivelock 61 22x40mm (DL61/22)
Drivelock 61 22x40mm (DL61/22)
| Part No. | 7930-809 |
| Code | DL61/22 |
| d (h8) (mm) | 22 |
| D (mm) | 40 |
| L1 (mm) | 21 |
| L (mm) | 26 |
| B (mm) | M5 |
| Ts Nm | 9.7 |
| T Nm | 160 |
| F kN | 14 |
| p N/mm2 | 70 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
